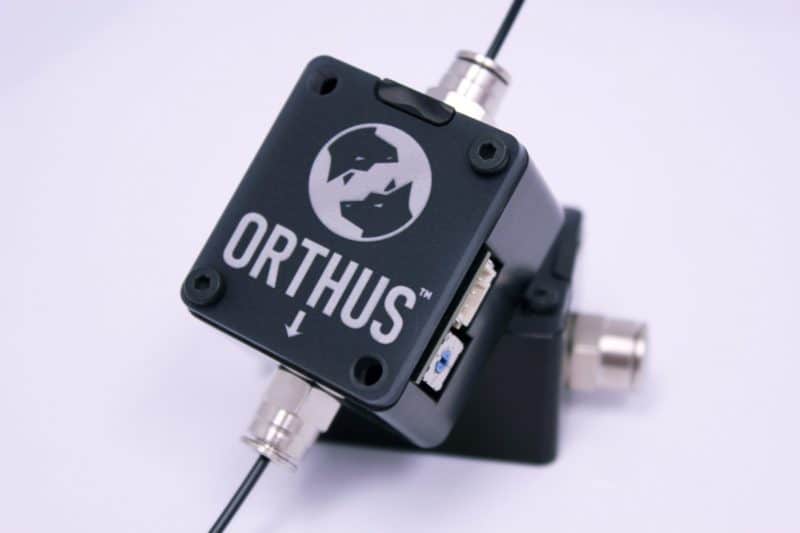

Orthus™ Filament Monitor
CA$125.00
Orthus™, an ultra-precise filament monitoring sensor enabling instantaneous detection of both filament runout and jam.
SKU: N/A
Categories: Filament Detector, RFD
Detect both filament runout and jam
Orthus™ is a smart and ultra-precise filament runout and jam sensor. As soon as there’s a lack of filaments in your spool or if there’s a jam in your extruder or hotend, Orthus™ will engage a pause routine on your printer.
- Uncontested Precision
Orthus™ is one of the most precise filament sensors on the market. With a standard resolution of 9µm, it can provide detection and pause your print almost instantly. - Variable sensitivity
You can manually adjust the sensitivity. The physical switch let you choose between a resolution of 9µm, 148µm or 1,229mm, more than enough for any type of filament. - Clear Movement Indicator
As long as there is movement, Orthus™ will clearly indicate the state with a blinking led. - Automatically pause your print
The sensor interact with your 3d printer controller so it can automatically pause your print when Orthus™ send a false signal to your printer. - Compatible with 1.75mm or 2.85mm filament

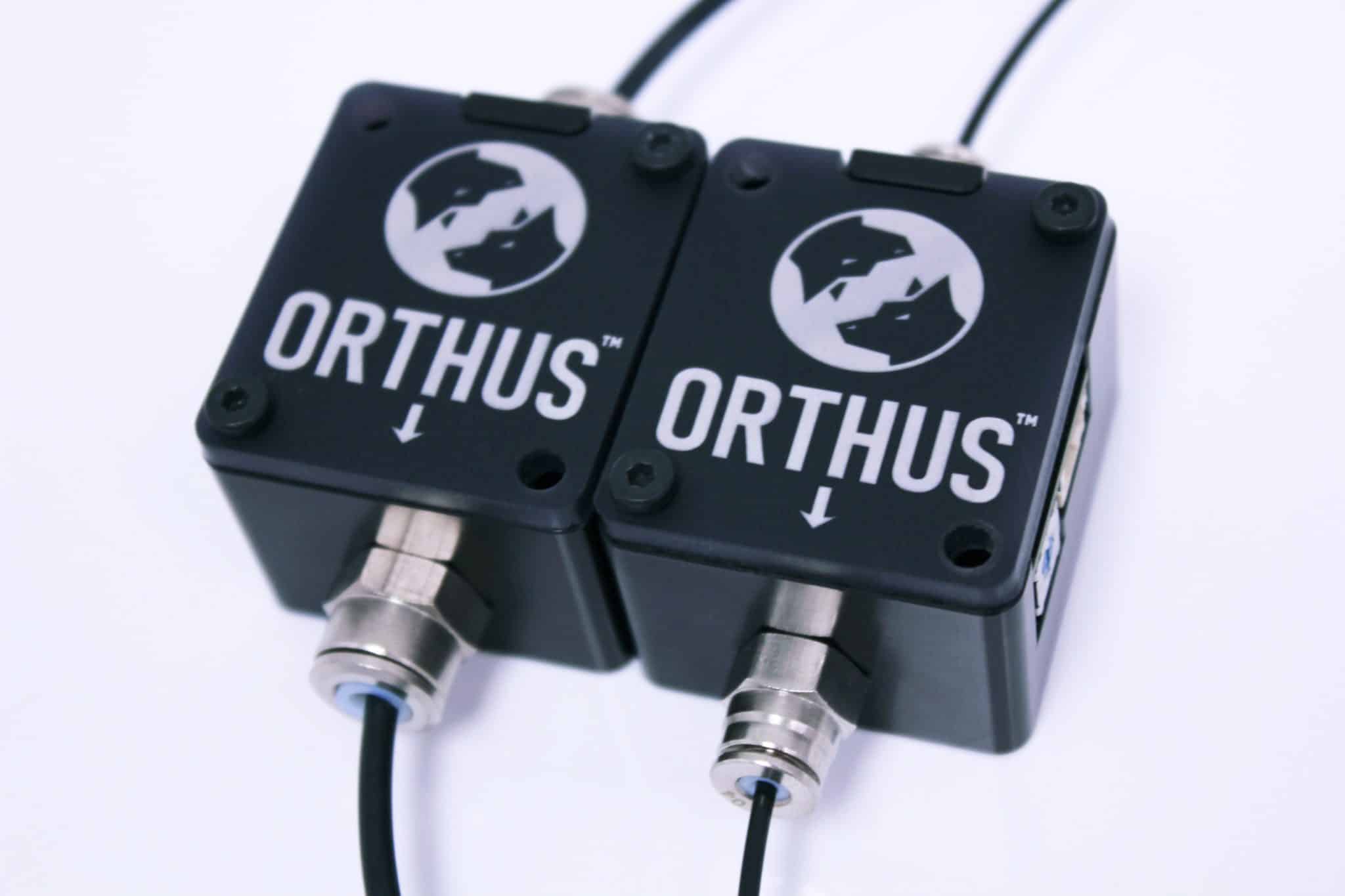

Orthus™ is available for either 1.75mm diameter or for 2.85mm diameter filaments. - Ultra Durable
Orthus™ is made of metal and the front plate is a hard acrylic sheet. No printed parts are used in the assembly. - Use any filament
Orthus ™ excels with any type of polymer: from flexible filaments to reinforced or filled filaments, including transparent filaments. - Easy Installation
Orthus™ is really easy to install in your own 3d printing environment. Simply mount the sensor between your filament spool and your extruder using the provided screws. - Simple Configuration
Follow our well-guided documentation and learn how easy it is to configure your Orthus™. In just a few lines of code, you’ll be able to use your new filament detector.
Specifications | Min | Typical | Max | Unit |
---|---|---|---|---|
Input voltage | 3.3 | 5 | 5.5 | V |
Input current | 40 | mA | ||
Input power | 200 | mW | ||
Output voltage | Voltage Input | Logical high/low | 0 | V |
Temperature | 21 | 0 | ℃ | |
Mounting thread | M3x0.5 | mm |
For the complete documentation and setup guide, consult https://docs.dyzedesign.com/orthus
Item | Quantity |
---|---|
Orthus Filament Monitor (1.75mm or 2.85mm) | 1 |
Cable (1 meter) | 1 |
Mounting hardware (M3 x 30 screw) | 2 |
