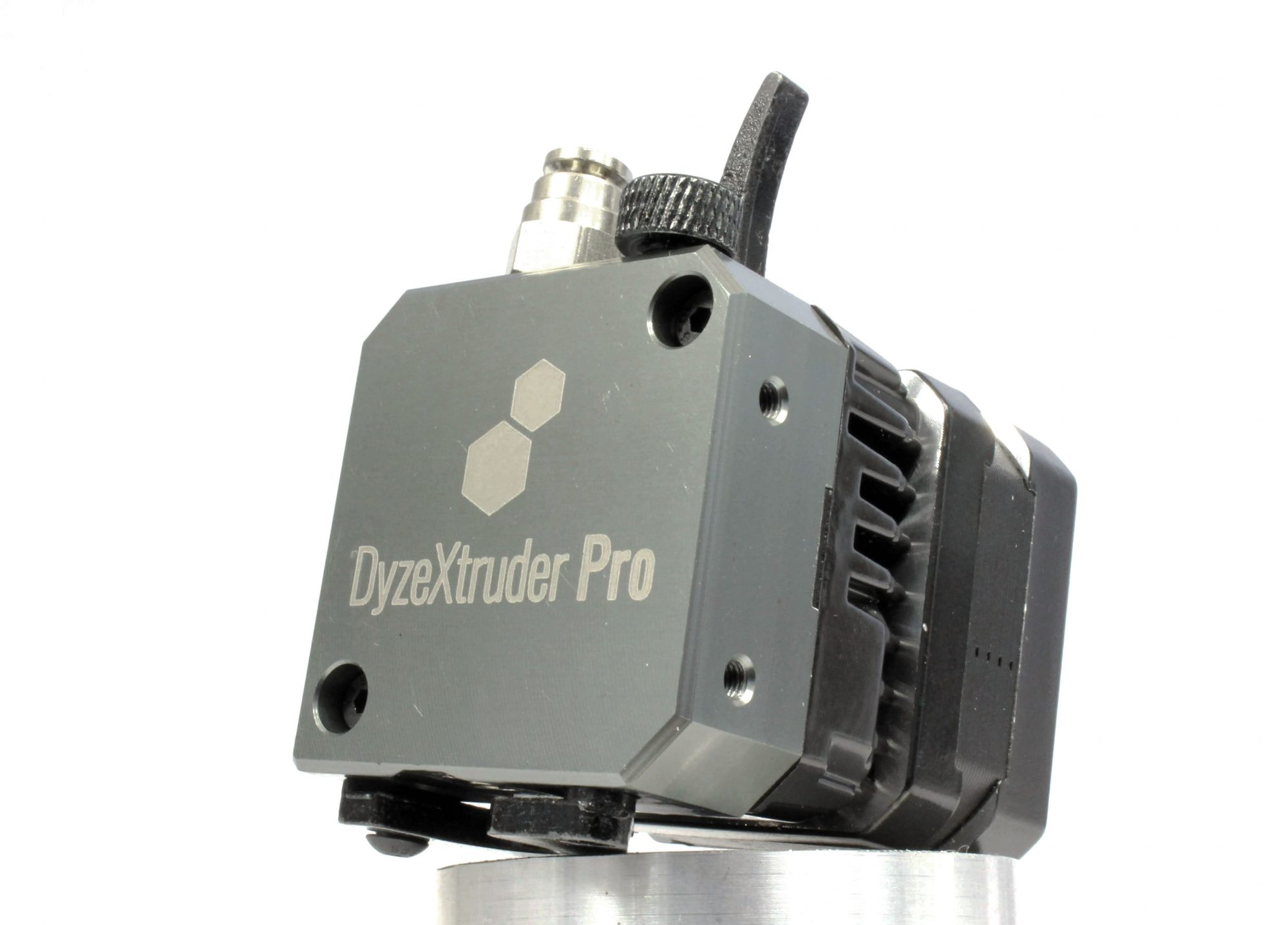

DyzeXtruder Pro 1.75mm Extruder
CA$275.00
Extrudeur tout métal haute performance conçue pour les environnements à haute température et contrôlés. Puissant, léger et conçu pour fonctionner avec n’importe quel filament.
DyzeXtruder Pro est un extrudeur léger et entièrement en métal qui possède également l’un des plus petits facteurs de forme du marché: elle n’est pas plus grande que la NEMA 17 utilisée, ce qui la rend très efficace dans une configuration à plusieurs extrudeurs. De plus, l’extrudeur est plus fort que jamais. Avec ses dents améliorées et ses nouveaux types de roulements, le DyzeXtruder Pro peut pousser jusqu’à 10 kg de force. Ceci est plus que nécessaire pour toutes les applications d’impression 3D. Enfin, le nouveau bloc a des ailettes de refroidissement pour une meilleure diffusion de la chaleur.
Toolless HotEnd Removal: Take your hotend off of your extruder in just a few seconds with the thumb screw. This will loosen the groove mount and free your hotend.
Multiple Mounting Possibilities: The side mounting threads make it very easy to assemble; two M3 screws are included to fit the DyzeXtruder Pro on a printer, bracketless. You can also mount the extruder on a panel.
Guided Filament: The guides conduct the filament out of the extruder. They follow the teeth shape, allowing no other exits for the filament. The whole part has a low friction coating, increasing the pushing efficiency.
Completely Redesigned Teeth: 35% more pushing force with rigid filaments. 25% more pushing for with flexible filaments. Also, the filament remains round, even after 100+ passages.
Metal Reduction Gears: The DyzeXtruder Pro has a 5.65 : 1 gear ratio. This ratio has been chosen to use the full potential of a very small motor while, enabling very high pushing forces. The gears are custom made from high strength hardened steel. This combination allows low friction operations and a longer life. The gears and bearings are designed to last for hundreds of kilograms in extreme conditions.
Dual-pinch drive system: The dual-pinch system allows a higher pushing force with a lower filament pressure. It reduces the risk of flattening the filament when highly detailed prints require a lot of retractions.
Constant pressure: The custom spring has been redesigned to provide the optimal pressure at the filament with the new teeth. You’ll always get the same output flow, reducing the variations involved in changing filaments.
Matched included motor: The included motor is chosen to match the maximum torque tolerated by filaments. The motor won’t grind your filament and will prevent any damage inside the extruder.
| Parameter | Value |
| Weight | 300g |
| Filament diameter | 1.75mm |
| Operating current | 0.9A |
| Operating temperature (air cooled) | 0°C to +60°C |
| Operating temperature (liquid cooled) | 0°C to +120°C |
| Top fitting tube OD | 4.00mm |
| Gear ratio | 5.65 : 1 |
| Groove mount head thickness | 2 – 5mm |
| Mounting screw thread | M3 |
| Mounting screw min thread depth | 5mm |
- DyzeXtruder Pro
- 1000mm stepper motor cable
- 2* M3x10 mounting screw
- DyzeXtruder and Dyze Design Stickers
* Mounting bracket isn’t included. You can design your own or find some ideas from the community: https://www.yeggi.com/q/dyze/
