How can I setup and install my new DyzeXtruder-GT or DyzeXtruder Pro extruder ?

This guide is short and well structured. Make sure to follow each step. If you don’t, you may not be able to use these products correctly or even damage them. Some features can save you a lot of trouble if you know how to use them properly.

1

Electronics

2

Firmware

3

Cooling

4

Slicer

5

Installation

6

Use

*

Bowden Setup

Your extruder

Make sure you have the right DyzeXtruder

The name and version can be confusing. Make sure yours looks like the one below:

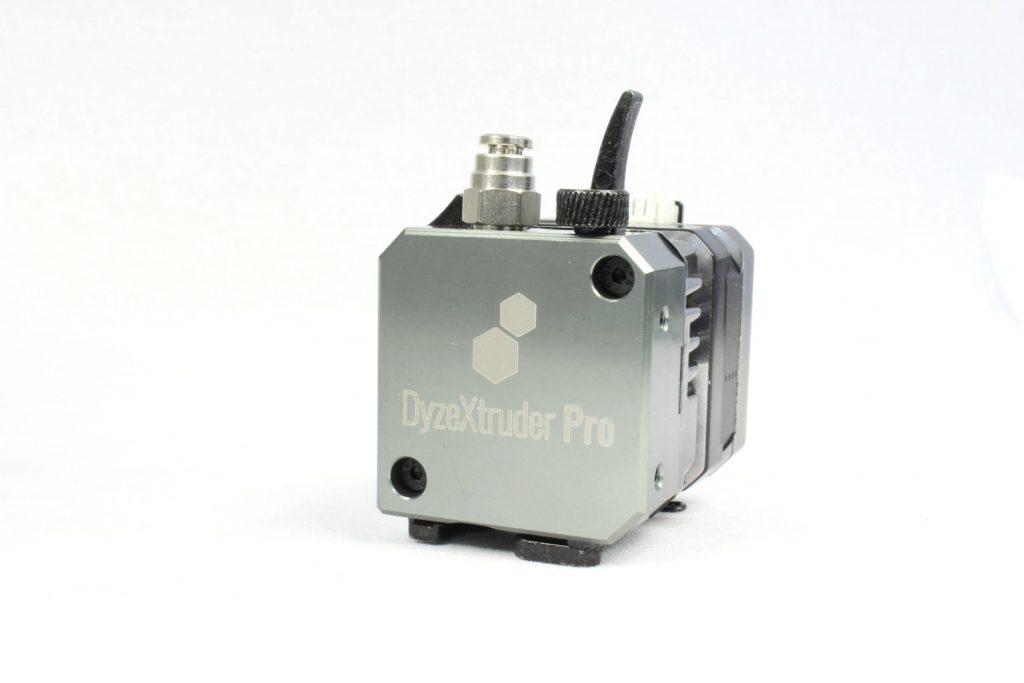

DyzeXtruder GT
DyzeXtruder GT
DyzeXtruder Pro High Performance Extruder
DyzeXtruder Pro

Step 1: Electronics

Adjust your current setting

Some boards can adjust motor current with the firmware. If you don’t see any potentiometer, there is a high chance that your board has this feature. Refer to the main board section if you aren’t sure. The values for firmware controlled current are detailed in step 2.

  1. Adjust the current limiter on your stepper drivers.



How can I adjust my stepper drivers?

How can I find my Rs resistance value?

How can I determine my stepper driver?

  1. Adjust your stepper drivers to the values listed below.

If your motor is running hot, above 45°C, reduce the current by 10% until you reach a maximum of 45°C.

Motor coils have a wide tolerance regarding resistance. Two identical extruders might require different stepper adjustments. Temperature is the easiest way to determine if the motor is running at the right current.

The DyzeXtruder GT requires less than 0.9 ampere to work.

A4988 [email protected]0.36V
A4988 [email protected]0.72V
A4988 [email protected]1.44V
DRV8825 [email protected]0.45V
RAPS1280.82V
TMC22081.17V
TMC22240.45V
TMC21301.27V





Plug the motor



Refer to your main board for proper extruder installation.

Ensure to use the cable provided with your extruder. Not all cables and motor have the same pinout.

If the motor is turning in the wrong direction, change the direction in the firmware directly or change the orientation of the motor.

Step 2: Firmware

Insert the appropriate value from the above table depending on your stepper driver.

How can I determine my driving mode?

Mode1Mode2Mode3StepSteps/mm (DyzeXtruder GT)Steps/mm (DyzeXtruder Pro)
HighHighHigh1/16578582
Mode1Mode2Mode3StepSteps/mm (DyzeXtruder GT)Steps/mm (DyzeXtruder Pro)
LowLowHigh1/16578582
HighLowHigh1/3211561164
LowHighHigh1/3211561164
HighHighHigh1/3211561164
Mode1Mode2Mode3StepSteps/mm (DyzeXtruder GT)Steps/mm (DyzeXtruder Pro)
LowLowHigh1/16578582
HighLowHigh1/3211561164
LowHighHigh1/6423122328
HighHighHigh1/12846244656
Mode1Mode2Mode3StepSteps/mm (DyzeXtruder GT)Steps/mm (DyzeXtruder Pro)
HighHighNC1/16578582
Mode1Mode2Mode3StepSteps/mm (DyzeXtruder GT)Steps/mm (DyzeXtruder Pro)
LowHighLow1/16578582
HighHighLow1/3211561164
SPIStepSteps/mm (DyzeXtruder GT)Steps/mm (DyzeXtruder Pro)
Firmware configuration1/16578582

The steps/mm provided are theoretical values to be used as a starting point. Steps/mm might need to be changed according to the printer extrusion flow and configurations. We recommend doing a calibration after the first installation. You should take these new values as your “default steps per unit” in the firmware.

Steps per mm

#define DEFAULT_AXIS_STEPS_PER_UNIT {____,_____,____,XXX}



Current setting

BoardMiniRamboRambo
Filepins_MINIRAMBO.hConfiguration_adv.h
Line
#define DEFAULT_PWM_MOTOR_CURRENT {1300, 1300, 1250}
#define DIGIPOT_MOTOR_CURRENT {135,135,135,135,135}
Current

Max: 1680

90%: 1512

Max: 175

90%: 160

#define EXT0_STEPS_PER_MM XXX
extruder_steps_per_mm XXX # Steps per mm for extruder stepper

Please note Redeem consider full steps for its configuration. If you have a 250 steps / mm at 16 µsteps, your value is 250 / 16 = 15.625

steps_pr_mm_e = XXX

Step 3: Cooling

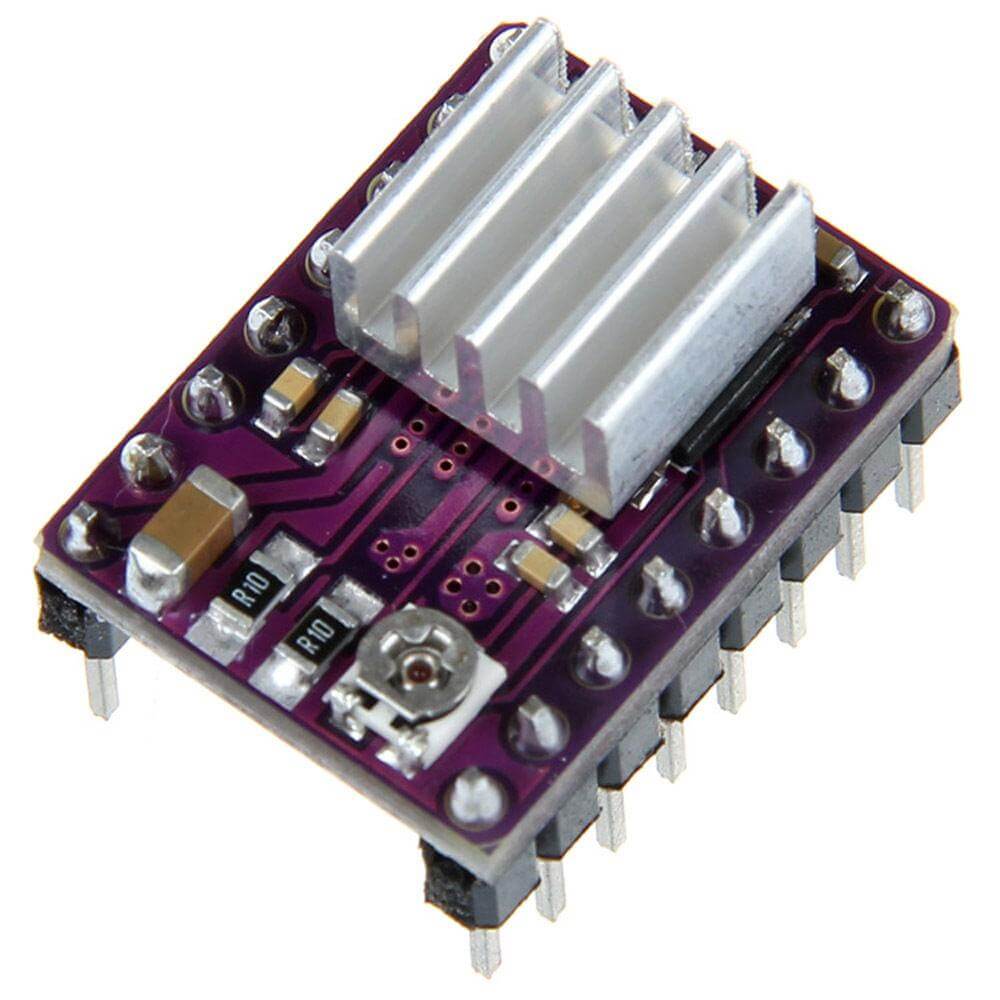

It is preferable to install a fan over the heatsink to help to cool the stepper driver. The high current set-up requires active cooling of the stepper driver in order to maintain a low enough temperature.

Make sure the stepper driver has a heatsink installed with thermal paste or thermal adhesive. The heatsink should be positioned precisely and should not touch the contacts pins.

Step 4: Slicer

Configure your slicer with the following values listed below.

Find the according setting based on your Slicer

ExtruderSetting NameBase valueMaximum value
DyzeXtruder GTRetraction Speed25 mm/s ( 1500 mm/min )35 mm/s ( 2100 mm/min )
DyzeXtruder ProRetraction Speed25 mm/s ( 1500 mm/min )35 mm/s ( 2100 mm/min )

Step 6: Install the DyzeXtruder

Use an existing bracket

Refer to the Preconfigured Printers section for brackets and mounting solutions.

Design your own bracket

Get the latest CAD here: Drawing

Please note that you only need to mount the bracket on one side of the DyzExtruder.

Step 7: Use the DyzeXtruder

Insert a filament

Push the large lever closer to the push-fitting. Engage the locking mechanism and release the lever. The locking mechanism should hold the lever in place.

Insert the filament.

Push the lever once more, the locking mechanism will release itself. Gently release the lever.

Remove a filament

Push the lever closer to the push-fitting. Push the locking mechanism and release the lever. The locking mechanism should hold the lever in place.

Remove the filament.

Push the lever once more, the locking mechanism will release itself. Gently release the lever.

Install a HotEnd

Using a 2mm Allen, loosen the top button head cap screw by a few turns. Using a 2mm Allen, loosen the bottom button head cap screw by a few turns too.

Using a 2mm Allen, slightly tighten the bottom button head cap screw until the GrooveMount plate touches the HotEnd. You should be able to remove it and install it easily.


This step must only be done once. Using the same hotend won’t require adjustments.
Using a 2mm Allen, tighten the bottom button head cap screw until it touches the GrooveMount plate.

Position the HotEnd to your required orientation.

Using a 2mm Allen, slightly tighten the top button head cap screw until the HotEnd is held in place.

Remove a HotEnd

Using a 2mm Allen, loosen the top button head cap screw by a few turns.

Turn the hotend GrooveMount holder and remove the hotend.

Setup for Bowden

The DyzeXtruders product can work either way, either in direct drive using the groove mount system or by reversing the motor direction for Bowden setup.

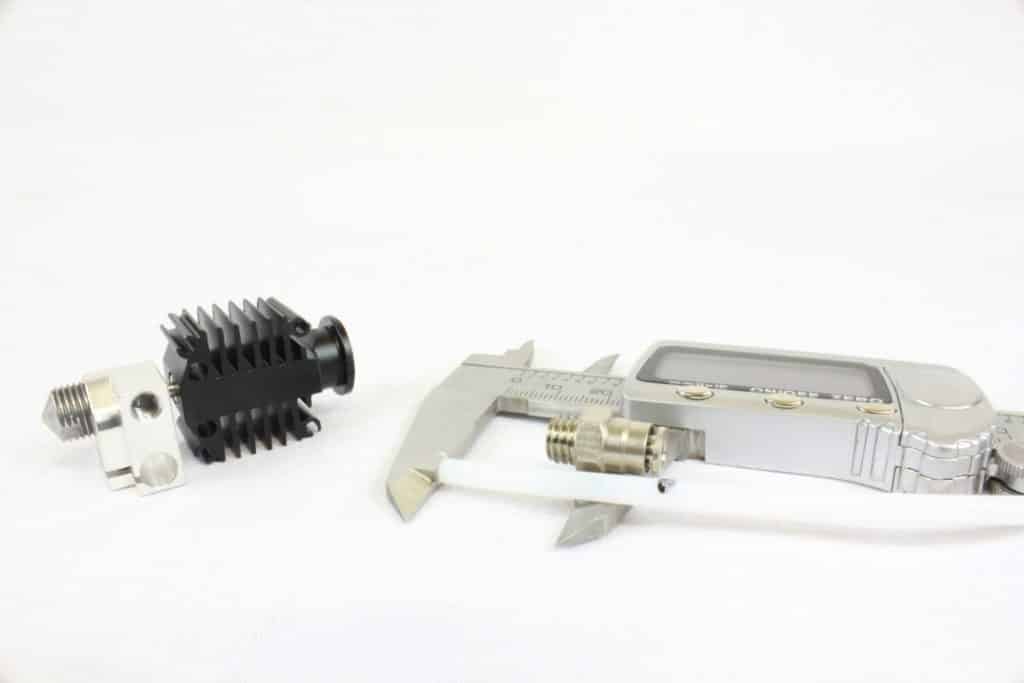

  1. For the extruder alone, you need a length of 15mm, from the top.
  2. Add the height of your fitting.
  3. Mark the tubing to visualize the depth.
  4. Insert the tubing up to the mark. The filament must be well guided inside the hotend with this tubing.
Measure example

Method 1: Switch the cable orientation

The 4 pin cable connected to your board can be connected in the opposite order by making an 180° rotation. This will reverse the motor direction as the coils order are reversed.

Method 2: Firmware modification

Firmware can reverse the extrusion direction. Find the corresponding option and reverse the logic.

Marlin

#define INVERT_E0_DIR true

Repetier

#define EXT0_INVERSE 1

Smoothie

alpha_dir_pin !0.5
